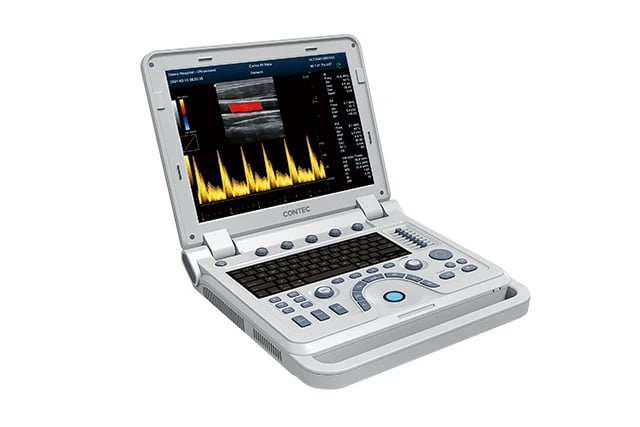

Contec CMS1700A Colour Doppler Ultrasound System
From R0
Out of Stock
Get Notified When Back in Stock
Join the waitlist for Contec CMS1700A Colour Doppler Ultrasound System and we'll email you as soon as it's available again.
We'll send you one email when this item is back in stock.
No spam, just a single notification.
Express — as soon as 24 hours* from R199
Economy R99, 3–6 working days · free over R3 000
R45 to your res at UCT & Stellenbosch
Free collection in Cape Town, Mon–Fri 10–4
7-day returns on defective or wrong items
Secure checkout · card, EFT or 4 instalments with Payflex
* Order early, stock permitting. Express averages 2–4 working days; regional and rural areas add 1–2 days.
Brand
ContecCategories
You might also like
All Ultrasound
A portable colour Doppler ultrasonic diagnostic device with a 15 inch TFT display and built-in lithium battery. It is intended for clinicians performing abdominal, cardiac, vascular, breast, obstetric and gynaecological, small organ, urological, muscle, endocrine and paediatric examinations.
The Contec CMS1700A is a high-resolution colour Doppler ultrasonic diagnostic device built on a powerful computer processing platform. It uses Doppler ultrasound imaging, advanced image processing (including digital beam-forming, tissue harmonic imaging (THI) and image speckle suppression) and a digital integrated graphic management system. The internal professional measurement software package is designed to meet clinical diagnostic requirements.
Key features
- 15 inch TFT display with a 170° viewing angle and a resolution of 1024 x 768 pixels
- 7500 mAh lithium battery with a continuous working time of 2 hours
- One-button automatic image optimisation
- Optional trolley
- Advanced technologies: Digital Beam Forming (DBF), Real-time Dynamic Aperture (RDA), Dynamic Receiving Focus (DRF), Tissue Harmonic Imaging (THI), PW Auto Trace, trapezoid imaging and compound imaging
- B+CF/PDI/DPDI+PW and full-screen display
- Supports a PC printer; 128G memory card
- Lower radiation and lower power consumption; longer usage life of the TFT display
- Supports timing lock, which distributors can set according to the buyer's payment schedule, for example 3, 6 or 9 months
Specifications
| Display | 15 inch TFT, 170° viewing angle, 1024 x 768 pixels |
|---|---|
| Battery | 7500 mAh lithium, continuous working time 2 hours |
| Dimensions | 370 mm (L) x 360 mm (W) x 80 mm (H) |
| Weight | 6.5 kg |
| Imaging technologies | SR, DBF, RDA, THI, DRF, IMT, PW Auto Trace, B+CF/PDI/DPDI+PW |
| Display modes | B, B/B, 4B, PDI, M, CF, PW |
| Grey scale | 256 levels |
| Scanning depth | 250 mm maximum (depends on the probe) |
| Probe frequency | 2.0 MHz to 12.0 MHz (depends on the probe) |
| Zoom | 4 steps |
| Cine loop | 1086 frames |
| Archive management | Patient information management, image/video record, examination report |
| Software package | General, OB/GYN, URO, Cardiac, Vascular, Small Organ |
| Standard configuration | 2 probe connection ports, 2 USB, VGA port, video port, S-Video port, LAN port, B+CF, TSI, THI, iTHI, HPRF, B+PW, B+CF/PDI/DPDI+PW, space compounding imaging |
| Options | Colour M-mode, anatomic M-mode, wide scene imaging, linear array deflection/trapezoid imaging, trolley |
| Power supply | AC 100-240 V, 50-60 Hz |
| Included accessories | One convex probe (3.5 MHz), one power cord, one user manual, one adapter |
Applications
- Abdomen
- OB/GYN
- Vascular
- Small organ
- Also suitable for cardiac, breast, urology, muscle, endocrine and paediatric diagnosis
