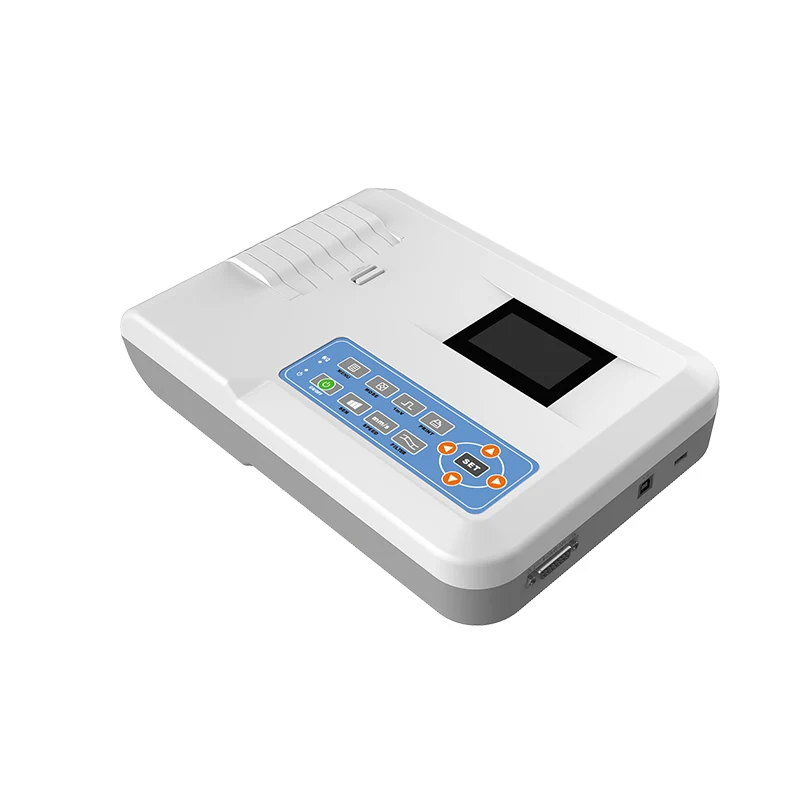

The Contec ECG300GA is a 12-lead resting electrocardiograph that acquires all leads simultaneously and prints waveforms on a thermal printer. It suits clinicians who need automatic ECG measurement and interpretation, including for home visits and health examinations.
The ECG300GA is an electrocardiograph that collects 12-lead ECG signals simultaneously and prints the waveform with a thermal printing system. It records and displays ECG waveforms in auto or manual mode, measures and interprets ECG waveform parameters automatically, prompts for "Lead off" and "Lack of paper", and offers a multi-language interface and case database management.
Key features
- Simultaneous 12-lead acquisition: digital signal processing with a power frequency filter, baseline filter and EMG filter.
- Single-screen display: shows 1/3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state together, to aid comparison during diagnosis.
- Printing modes and formats: manual, auto 4x3, auto 3x4+1, auto 3x4, auto 2x6+1 and auto 2x6, among others. The printed waveform length can be adjusted, and a timed print function is provided.
- Automatic analysis and diagnosis: routine ECG parameters are measured and an automatic diagnostic conclusion is provided, covering HR, P-R interval, P Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1) and R(V5)+S(V1), among others.
- Case storage: the built-in memory stores 15 cases, and an optional SD card stores up to 100 cases for review and statistics.
- Languages: interface and report in Chinese and English.
- Optional ECG-Sync software: connects to a PC by USB2.0 to form an ECG workstation. Real-time data can be imported for analysis and report printing, and cases stored on the electrocardiograph can be uploaded to the PC.
- Power supply: AC/DC mains and a built-in rechargeable lithium battery. In optimal DC state, up to 4 hours of standby, 70 minutes of continuous printing and 175 ECGs.
Not all optional functions are available in all regions.
