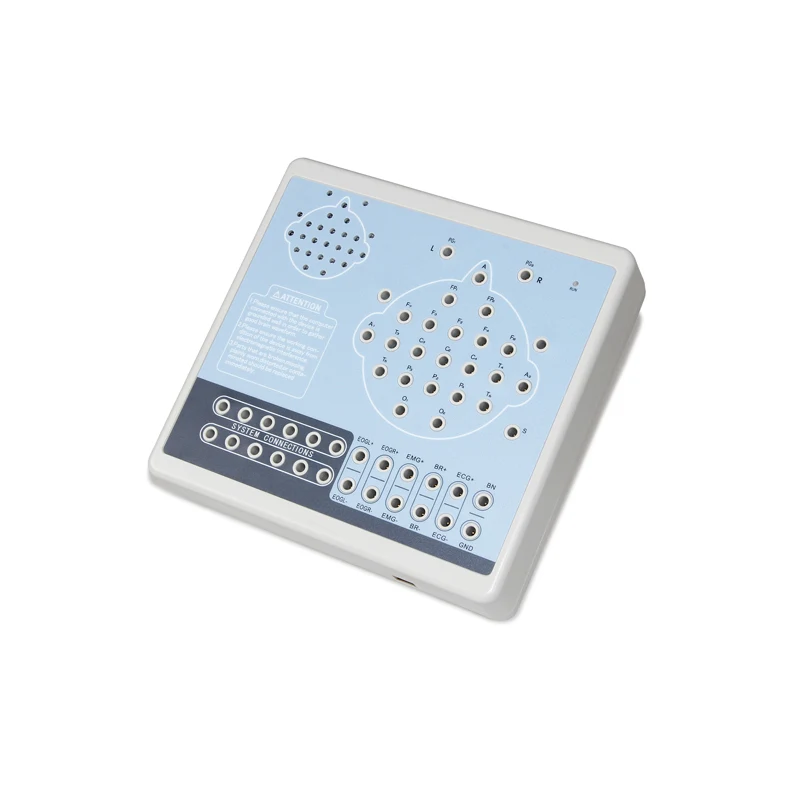

Contec KT88-2400 Digital Brain Electric Activity Mapping System
From R0
Out of Stock
Get Notified When Back in Stock
Join the waitlist for Contec KT88-2400 Digital Brain Electric Activity Mapping System and we'll email you as soon as it's available again.
We'll send you one email when this item is back in stock.
No spam, just a single notification.
Express — as soon as 24 hours* from R199
Economy R99, 3–6 working days · free over R3 000
R45 to your res at UCT & Stellenbosch
Free collection in Cape Town, Mon–Fri 10–4
7-day returns on defective or wrong items
Secure checkout · card, EFT or 4 instalments with Payflex
* Order early, stock permitting. Express averages 2–4 working days; regional and rural areas add 1–2 days.
Brand
ContecCategories
You might also like
All Medical Equipment
A PC-based EEG system that records brain electrical activity from electrodes and displays it as colour-depth electroencephalograms. It is intended for clinicians checking conditions such as epilepsy, intracranial inflammation, cerebrovascular diseases and brain tumours.
The Contec KT88-2400 Digital Brain Electric Activity Mapping system collects EEG signals with electrodes, using integrated amplification, A/D conversion, automatic PC analysis and FFT to form an electroencephalogram displayed with colour depth. It is applicable for checking conditions such as epilepsy, intracranial inflammation, cerebrovascular diseases and brain tumours.
Key features
- 10/20 electrode placement under the international standard system; leads can be changed during replay, and different combined leads are supported during sampling.
- Bioelectricity amplifier for extracting brainwaves, with continuous recording of up to 24 hours and an integrated fully automatic calibration system.
- Playback function with adjustable amplitude and display speed. A subdividing time line divides each second of waveform into 5 parts to make review easier.
- Digital filter system that can be set as required, with different window types.
- EEG signal clipping: any section of the EEG wave can be analysed and stored, and several waveform segments can be selected for automatic analysis and extraction of parameters.
- Electronic frequency ruler with a partial enlarging window for measuring EEG period, amplitude and frequency, adjustable according to the user's judgement.
- Events such as eyes opening, eyes closing and flashing are marked on the EEG wave in different colours. User-defined events can be added and waveform colours set freely, so the corresponding waveform can be found quickly by event name during case playback.
- Automatic analysis, including power spectrum analysis and pathologic wave detection for a selected waveform. Several graphs can be shown on one screen, including various BEAM maps, numerical BEAM, compressed spectrum graph and trend graph.
- Professional isolation transformer, dual power supply isolation system and optoelectronic data transmission for safety. Data is transmitted over a USB interface that only needs to be plugged in.
- Multifunctional USB flash stimulator, controlled manually or automatically. A flash stimulation scheme can be set and run during sampling.
- Case management with several means for research and quick statistics. Cases can be exported and imported and stored on MO or CD-RW disk for data research.
- Combined image and text report, editable by template and convertible to a Word document.
- Case files can be converted to EDF and BDF data formats for data exchange, academic exchange and further analysis.
- System parameters and display modes can be set to meet different user requirements.
- Marks and annotations can be added to a designated waveform so that the waveform at that time can be found quickly.
- Optional video function: USB camera that is easy to install, with flexible playback to browse the waveform at any time alongside the synchronously sampled image.
- Optional SpO2 function.
- Not all optional functions are available in all regions.
